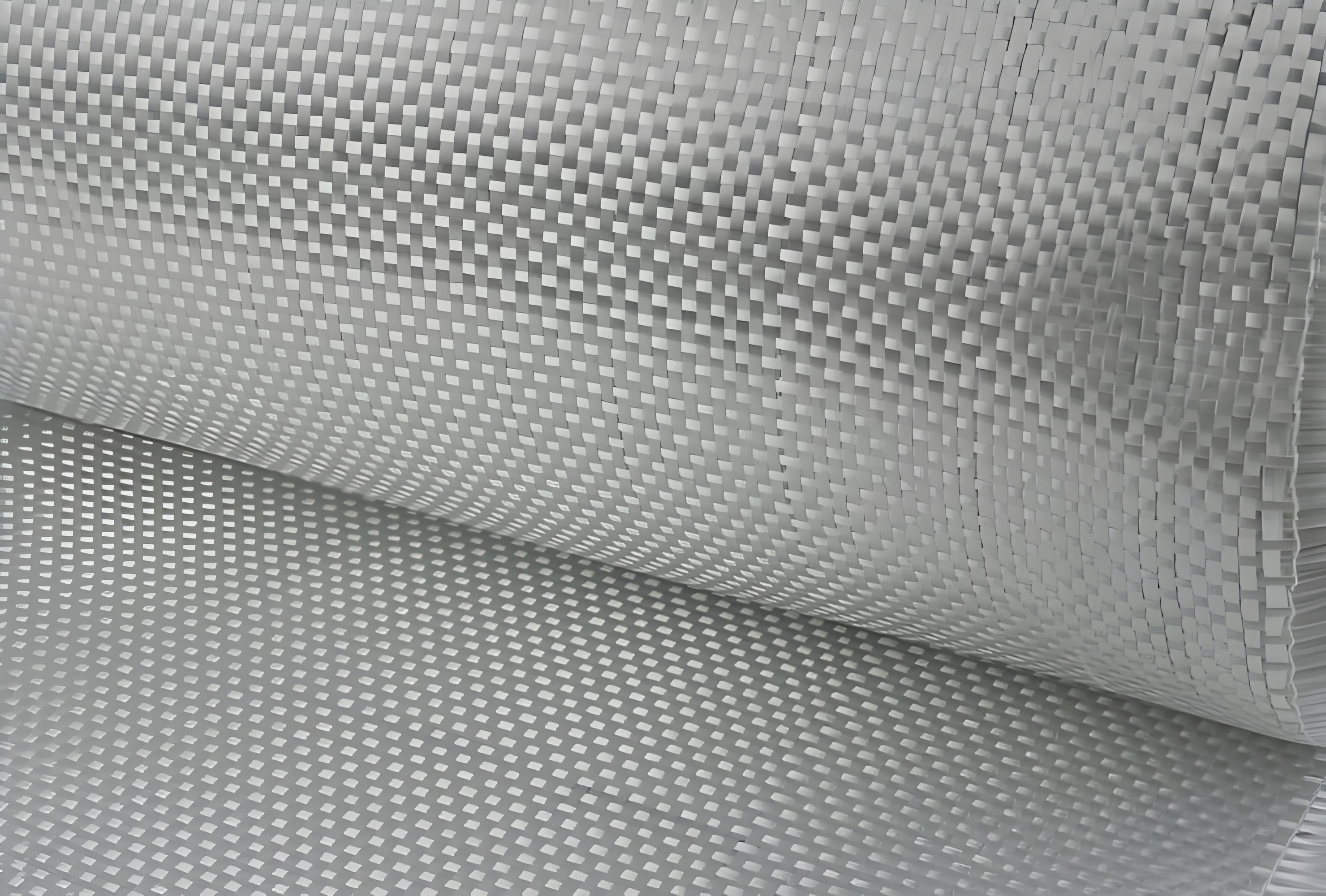

玻璃纖維方格布是由直接無捻粗紗織成的一種平紋或斜紋增強織物,這種結構給予織物使用時的空間穩定性。適用于各種樹脂增強系統,如不飽和聚酯樹脂,乙烯基樹脂和環氧樹脂等。廣泛應用于手糊和機械成型產品,如船舶、飛機、玻璃鋼容器、游泳池、車體、帆板、家具及其他玻璃鋼制品。
Woven roving is made of direct rovings in plain, twill pattern.The input rovings are designed to give control wet-out and excellent laminate properties. It is compatible with Polyester,Vinyl and Epoxy resin and widely used in boat building,storage tanks, swimming pools, sailboards, Auto parts, FRP flat panels etc, suitable for hand lay up, BMC, Filament winding, mold press processes.
產品規格 Specification :
| 規格型號Code | 玻璃類型Glass tape | 重量weight(g/m2) | 斷裂強度Breaking Strength N/50mm 經向warp | 斷裂強度Breaking Strength N/50mm 緯向weft | 組織Weave | 含水率 %Moisture content | 可燃物 %L.O.I content |
| EWR200 | E/ECR | 200 | 1300 | 1100 | Plain | ≤0.2 | 0.4-0.8 |
| EWR270 | E/ECR | 270 | 1900 | 1700 | Plain | ≤0.2 | 0.4-0.8 |
| EW300 | E/ECR | 300 | 2000 | 1800 | Plain | ≤0.2 | 0.4-0.8 |
| EWR360 | E/ECR | 360 | 2200 | 2000 | Plain | ≤0.2 | 0.4-0.8 |
| EWR400 | E/ECR | 400 | 2500 | 2200 | Plain | ≤0.2 | 0.4-0.8 |
| EWR500 | E/ECR | 500 | 3000 | 2750 | Plain | ≤0.2 | 0.4-0.8 |
| EWR530 | E/ECR | 530 | 3300 | 3000 | Plain | ≤0.2 | 0.4-0.8 |
| EWR580 | E/ECR | 580 | 3600 | 3300 | Plain | ≤0.2 | 0.4-0.8 |
| EWR600 | E/ECR | 600 | 4000 | 3850 | Plain | ≤0.2 | 0.4-0.8 |
| EWR800 | E/ECR | 800 | 4600 | 4400 | Plain | ≤0.2 | 0.4-0.8 |
| EWR1000 | E/ECR | 1000 | 5300 | 5100 | Plain | ≤0.2 | 0.4-0.8 |
