產品介紹 Product Description

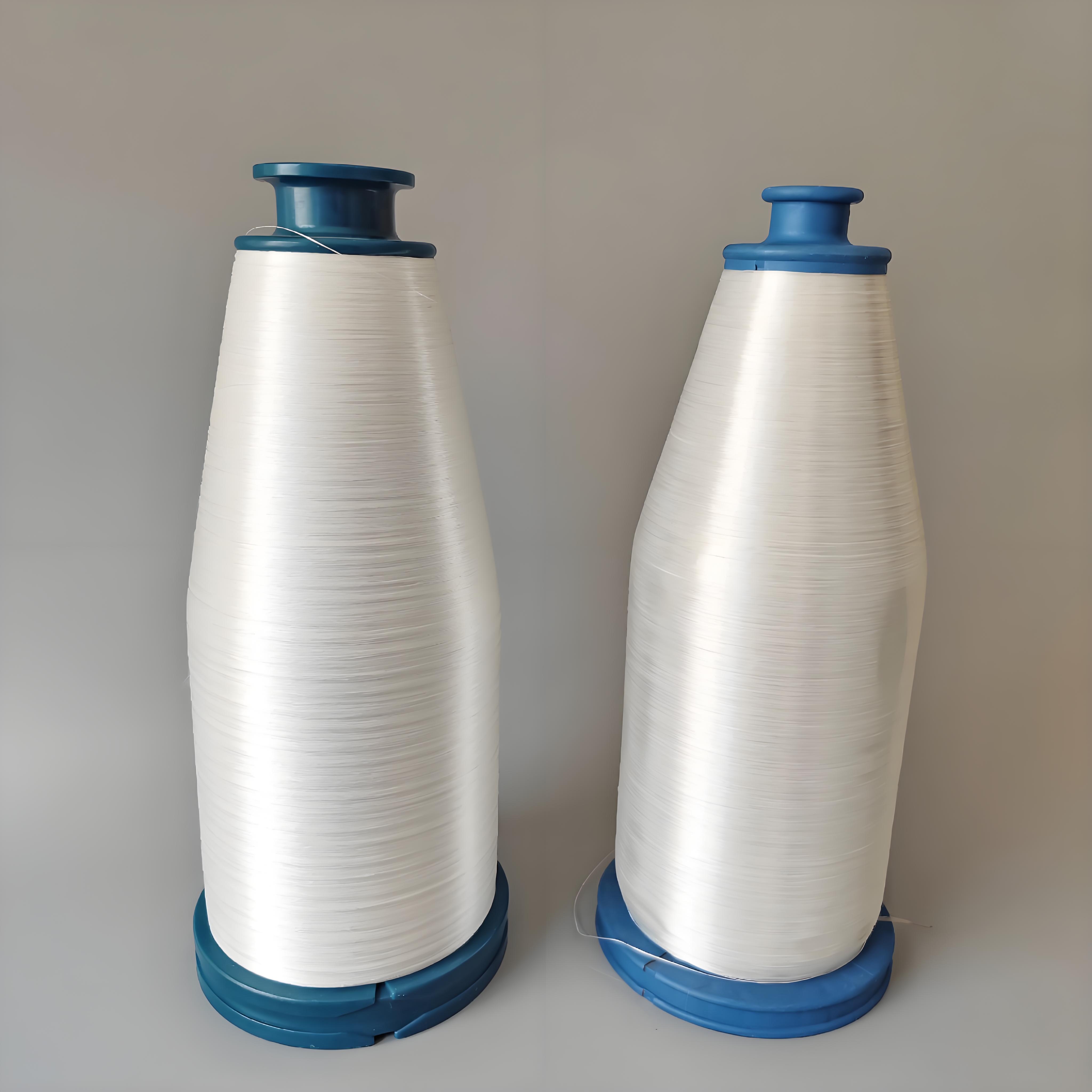

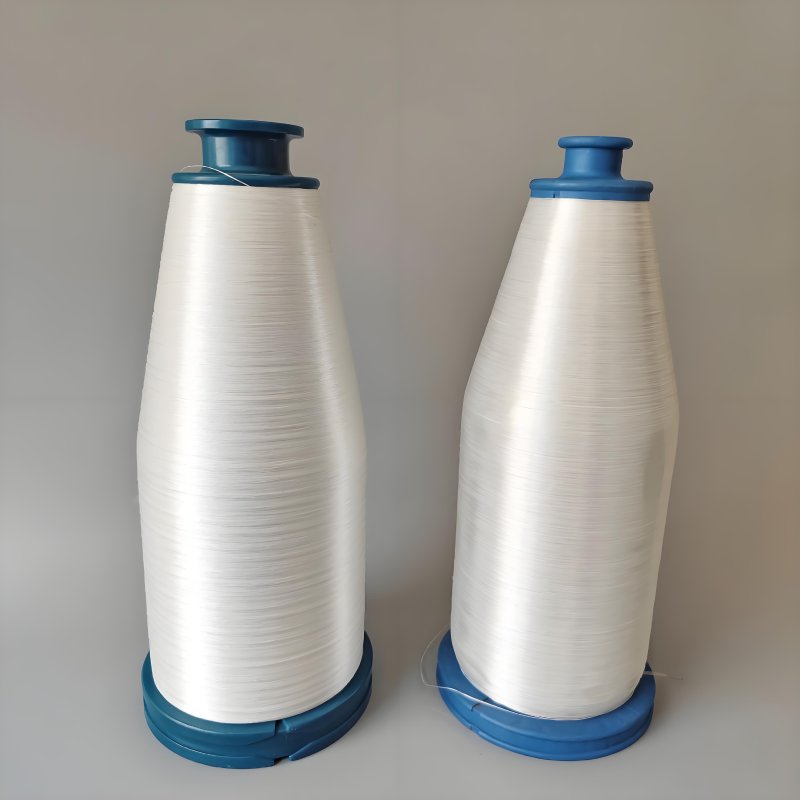

玻璃纖維加捻紗是由玻璃纖維原絲經過集束、采用加強型樹脂硅烷型浸潤劑處理,調理后再經過倍捻機加捻或并股后的成型制品,單纖維直徑7-11微米,產品規格67TEX-400TEX,可提供奶瓶、寶塔、紙管等不同成型、不同卷裝、不同捻向、不同捻度、不同股數、不同號數的捻紗。具有強度高、耐腐蝕、耐高溫、吸濕少等特點。廣泛應用于玻璃纖維平織、交織和網狀織物、玻璃纖維帶、繩、套管的生產,還可用作其它工作用紗。
Fiberglass twisted yarn is a finished product made through the following processes: bundling raw glass fibers, treating them with a reinforced resin silane-based sizing agent, conditioning the treated fibers, and finally twisting or plying them via a double-twisting machine. The diameter of its single fiber ranges from 7 to 11 microns, and its product specifications cover 67TEX to 400TEX. It is available in various winding forms (such as milk bottle type, pagoda type, and paper tube type), as well as with different twist directions, twist levels, numbers of plies, and counts.
This product boasts characteristics including high strength, corrosion resistance, high temperature resistance, and low moisture absorption. It is widely applied in the production of glass fiber plain-woven, interwoven, and mesh fabrics, as well as glass fiber tapes, ropes, and sleeves. Additionally, it can be used as other types of industrial yarns.
技術參數 technical data sheet
| 序號 No. | 單絲直徑 monofilament diameter (μm) | 線密度 (tex) | 強力 (N/tex) | 浸潤劑類型 Resin type | 捻度 twist | 捻向 Twist type |
| 1 | 9 | 50 | ≥0.7 | 樹脂硅烷型 silane | 28-120 | S,Z |
| 2 | 9 | 67 | ≥0.7 | 樹脂硅烷型 silane | 28-120 | S,Z |
| 3 | 9 | 100 | ≥0.7 | 樹脂硅烷型 silane | 28-120 | S,Z |
| 4 | 11 | 100 | ≥0.6 | 樹脂硅烷型 silane | 28-120 | S,Z |
| 5 | 11 | 134 | ≥0.6 | 樹脂硅烷型 silane | 28-120 | S,Z |
| 6 | 11 | 170 | ≥0.6 | 樹脂硅烷型 silane | 28-120 | S,Z |
| 7 | 13 | 200 | ≥0.5 | 樹脂硅烷型 silane | 28-120 | S,Z |
| 8 | 13 | 230 | ≥0.5 | 樹脂硅烷型 silane | 28-120 | S,Z |
| 9 | 13 | 260 | ≥0.5 | 樹脂硅烷型 silane | 28-120 | S,Z |
| 10 | 13 | 300 | ≥0.5 | 樹脂硅烷型 silane | 28-120 | S,Z |
| 11 | 13 | 340 | ≥0.5 | 樹脂硅烷型 silane | 28-120 | S,Z |
